Simplifying Combustion Control: A Closer Look at the Honeywell SLATE System
In today’s industrial environments, efficiency, safety, and ease of use aren’t just “nice to have”—they’re essential. That’s exactly where the Honeywell SLATE system stands out. Designed as a programmable flame safety and combustion control solution, SLATE brings modern technology into a compact, modular platform that simplifies installation, operation, and maintenance.
A Smarter Approach to Flame Safety
At its core, SLATE is built to make flame safety and combustion control more intuitive without sacrificing capability. Its programmable logic allows users to tailor the system to their specific application, while maintaining reliable and consistent performance.

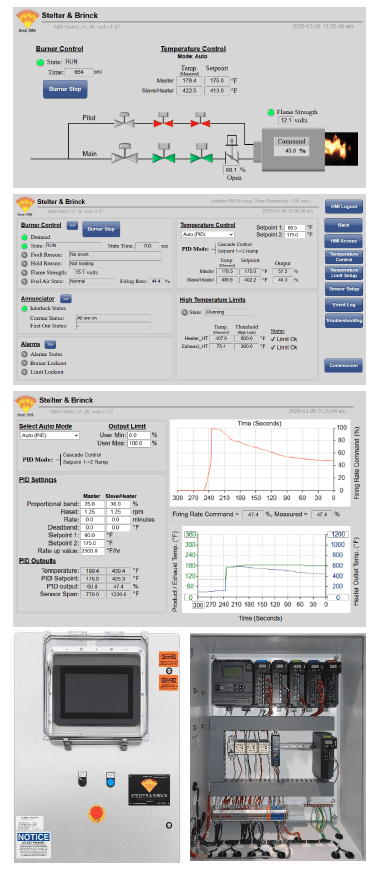

One of the most noticeable upgrades is the integrated color touchscreen HMI. Operators can quickly view system status, identify issues, and respond in real time thanks to clear visual feedback and first-out annunciation. This reduces guesswork and helps teams act faster when it matters most.
Built for Simplicity and Flexibility
Traditional systems can be complex and time-consuming to install or replace. SLATE addresses this with a modular, DIN rail-mounted design that supports “plug-and-play” module replacement. Whether you’re upgrading or servicing the system, the process is straightforward—saving both time and labor costs.
The system also includes direct-coupled actuators with position feedback, along with customizable settings for low fire and light-off conditions. This level of control helps optimize combustion performance while supporting emissions goals.
Advanced Connectivity for Modern Systems
Connectivity is a major advantage of the SLATE platform. With built-in Ethernet capability, the system supports:
- Modbus IP
- BACnet IP
- Web services
SLATE is able to be integrated into existing building management or industrial control systems. Optional features like remote monitoring via modem further enhance visibility and control, even from offsite locations.
Certified and Ready for Demanding Environments
SLATE is designed to meet rigorous industry standards, with approvals from UL, CSA, and FM. This ensures it can be confidently deployed in a wide range of industrial applications.
For more demanding environments, optional configurations are available, including:
- NEMA 4-rated enclosures
- Low-temperature operation down to -20°F
- Additional analog and digital I/O
- Pressure and temperature monitoring instrumentation
- PLC dry contact integration
These options allow the system to be tailored for specific operational requirements, no matter how challenging the conditions.
Cost-Effective Without Compromise
Perhaps one of SLATE’s most compelling advantages is its cost-effectiveness. By combining advanced features, modular design, and modern connectivity into a single platform, it delivers high performance without the complexity and expense typically associated with traditional systems.
Final Thoughts
The Honeywell SLATE system represents a shift toward smarter, more user-friendly combustion control. With its blend of programmability, modular design, and advanced communication capabilities, it’s well-suited for facilities looking to modernize their operations while improving safety and efficiency.
For engineers, operators, and facility managers alike, SLATE offers a practical path forward—one that balances innovation with simplicity.
